Effective Sensor Size
2/3 inch sensor size when using 4K B4 mount
(Actual sensor size 23.10mm x 12.99mm)
Lens Mount
B4 2/3 inch installed
Active EF mount also included
Lens Control
Electronic control via 12-pin broadcast connector. Control via EF mount pins when using URSA Mini Pro EF Mount with compatible EF lenses.
Lens Correction
In-camera correction of color fringing when using compatible broadcast lenses
Dynamic Range
13 Stops
Dual Native ISO
0dB and 18dB gain.
Sensitivity at 0dB Gain
f11 with 2160p59.94.
f12 with 2160p50.
at 2,000 lux with 89.9% reflectance.
additional 1.1 stop light loss using 4K B4 mount.
Signal to Noise Ratio
64.62dB for 2160p
Ultra HD scaled from 5.3K
Built in ND Filters
Four position ND filter wheel with clear, 2 stop, 4 stop and 6 stop ND filters.
Focus
Focus button triggers auto focus when using compatible lenses with focus servo. Touch and hold on LCD determines focus region and triggers auto focus.
Iris Control
Iris wheel and touchscreen slider for manual iris adjustment on electronically controllable lenses, iris button for instant auto iris settings on compatible lenses so no pixel is clipped in film mode. Scene average auto exposure in video and extended video mode.
Screen Dimensions
4 inch
Screen Type
LCD capacitive touchscreen
Controls
Touchscreen menus on 4 inch screen. Push buttons for other controls. 3 assignable shortcut keys and 2 assignable shortcut keys (VTR and RET) on compatible broadcast lenses.
ProRes Shooting Resolutions and Frame Rates
3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor
3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor
1920 x 1080 (HD) up to 120 fps scaled from 2.7K windowed sensor
1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor
1920 x 1080 (HD) up to 50 fps scaled from full sensor
H.265 Shooting Resolutions and Frame Rates
3840 x 2160 (Ultra HD) up to 60 fps from Ultra HD window or scaled from 5.3K windowed sensor
3840 x 2160 (Ultra HD) up to 50 fps scaled from full sensor
H.264 Shooting Resolutions and Frame Rates
1920 x 1080 (HD) up to 60 fps scaled from Ultra HD or 5.3K windowed sensor
1920 x 1080 (HD) up to 50 fps scaled from full sensor
Blackmagic RAW Shooting Resolutions and Frame Rates
6144 x 3456 (6K) up to 50 fps
6144 x 2560 (6K 2.4:1) up to 60 fps
5376 x 3024 (5.3K 16:9) up to 60 fps
3728 x 3104 (3.7K 6:5 anamorphic) up to 60 fps
3840 x 2160 (Ultra HD) up to 60 fps
1920 x 1080 (HD) up to 150 fps
Project Frame Rates
23.98, 24, 25, 29.97, 30, 50, 59.94 and 60 fps
Off-speed frame rates up to 60p in Ultra HD and up to 150p in HD.
Metadata Support
Automatically populated lens data from electronic B4 lenses. Automatic recording of camera settings and slate data such as project, scene number, take and special notes.
Timecode Clock
Highly accurate timecode clock. Less than 1 frame drift every 8 hours

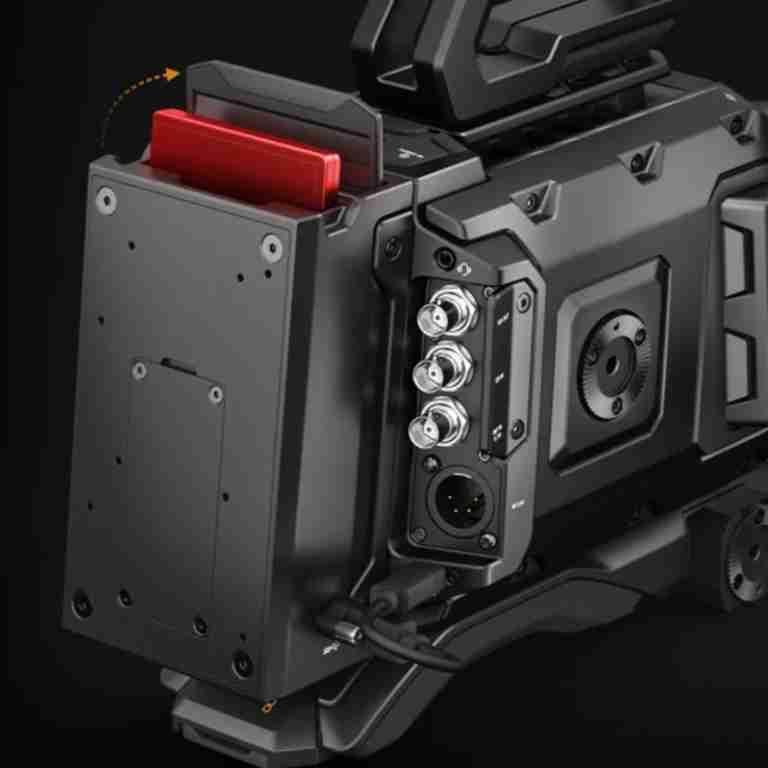

Connections
SDI Video Inputs
1
SDI Video Outputs
1
SDI Monitor Outputs
1
SDI Rates
1.5G, 3G, 6G, 12G.
Analog Audio Inputs
2 x XLR switchable between mic, line and AES digital audio. Phantom power support.
Analog Audio Outputs
1 x 3.5mm headphone jack, supports iPhone style headset for talkback.
Reference Inputs
Tri-Sync/Black Burst/Timecode.
Lens Control
1 x 12-pin Hirose Broadcast Lens Connector
Remote Control
1 x 2.5mm LANC input for Rec Start/Stop, plus Iris and Focus control using compatible lenses.
Computer Interface
1 x USB Type?€?C 3.1 Gen 2 with power delivery for external drive recording and connecting Blackmagic Focus and Zoom Demand. 1 x USB Type?€?C for software updates.
Audio
Microphone
Integrated stereo microphone.
Built in Speaker
1 x mono speaker
Standards
SD Video Standards
None
HD Video Standards
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60 1080i50, 1080i59.94, 1080i60
Ultra HD Video Standards
2160p23.98, 2160p24, 2160p25, 2160p29.97, 2160p30, 2160p50, 2160p59.94, 2160p60
SDI Compliance
SMPTE 292M, SMPTE 424M, SMPTE 425M level A and B, SMPTE 2081€?1, SMPTE 2081€?10, SMPTE 2082€?1 and SMPTE 2082€?10
SDI Audio Sampling
48 kHz and 24 bit
Media
2 x CFast 2.0 card slots, 2 x SD UHS?€?II card slots, 1 x USB?€?C 3.1 Gen 2 expansion port with power delivery for recording to external media.
Media Format
Can format media to ExFAT for Windows and Mac or HFS+ for Mac (file systems).
Codecs
Apple ProRes 422 HQ,
Apple ProRes 422,
H.265 SDI (10-bit 4:2:2),
H.265 High (10-bit 4:2:0),
H.265 Medium (10-bit 4:2:0),
H.265 Low (10-bit 4:2:0),
H.264 SDI (10-bit 4:2:2),
H.264 High (8-bit 4:2:0),
H.264 Medium (8-bit 4:2:0),
H.264 Low (8-bit 4:2:0),
Blackmagic RAW Constant Bitrate 3:1,
Blackmagic RAW Constant Bitrate 5:1,
Blackmagic RAW Constant Bitrate 8:1,
Blackmagic RAW Constant Bitrate 12:1,
Blackmagic RAW Constant Quality Q0,
Blackmagic RAW Constant Quality Q1,
Blackmagic RAW Constant Quality Q3,
Blackmagic RAW Constant Quality Q5
Control
External Control
Lens control of compatible lenses using Blackmagic Zoom Demand and Blackmagic Focus Demand, Blackmagic SDI Control Protocol, iPad control via Bluetooth, 1 x 2.5mm LANC for lens and record control.
Color Corrector
DaVinci YRGB.
Talkback and Tally
Talkback
SDI Channels 15/16 and iPhone headset.
Live Tally Indicator
Tally on LCD, URSA Viewfinder and URSA Studio Viewfinder.
Storage Type
2 x CFast 2.0
2 x SD UHS?€?II cards
1 x high speed USB?€?C expansion port for external media.
2.5 inch SSD using optional URSA Mini Recorder
Storage Rates
Storage rates based on 30 frames per second.
6144 x 3456 (6K)
Blackmagic RAW 3:1 – 323 MB/s
Blackmagic RAW 5:1 – 194 MB/s
Blackmagic RAW 8:1 – 121 MB/s
Blackmagic RAW 12:1 – 81 MB/s
Blackmagic RAW Q0 – 242 to 483 MB/s
Blackmagic RAW Q1 – 162 to 387 MB/s
Blackmagic RAW Q3 – 108 to 277 MB/s
Blackmagic RAW Q5 – 65 to 162 MB/s
6144 x 2560 (6K 2.4:1)
